Precision Blackbodies

Tube Furnace Blackbody Assemblies & Parts

Thermo Gauge tube furnace parts come in several sizes according to the basic cavity size in use. The sketch below illustrates the outline of the different size cavities along with their basic part-class designation. There are only three steps involved in ordering parts for a furnace.

STEP 1-Select the Type Cavity on your furnace, if it's not obvious, refer to the sketches and dimensions below.

STEP 2-From the Part Number table below the cavity sketches select the specific part or parts that you need.

STEP 3 -Request a current quotation by phone, fax or email web.

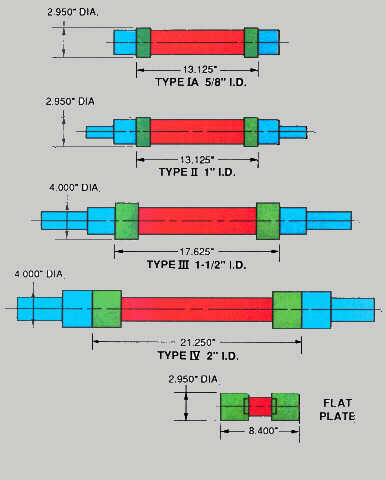

Sketches of Graphite Tube Furnace Cavity Elements


Part Number Table



Item

Part Numbers

Cavity
Type IA
5/8"
Cavity
Type II
1"
Cavity
Type III
1.5"
Cavity
Type IV
2"
Complete Blackbody Assembly
(order only with new furnace)
1001063
1001044
1001058
1001043
Quartz Tube
2020001
2020001
2020003
2020004
Lock Ring
1501012
1501012
N/A
1501113
Inside PG Ring
1501091
1501091
1501093
1501094
Outside PG Ring
1501092
1501092
1501093
1501095
Heater Element
1501013
1501014
1501001
1501015
Mating Ring
1501096
1501011
1501019
1501097
Felt and Tape
1001064
1001065
1001066
1001067
Extension Tube
1501073
1501040
1501074
1501042

For Flat Plate option, contact us.
